 CTS kit Advanced Ver.

CROSS TRAILER VEHICLE

High-efficiency Planetary Gearbox
The Reverse Rotation Transfer Case
Aluminum Suspension System

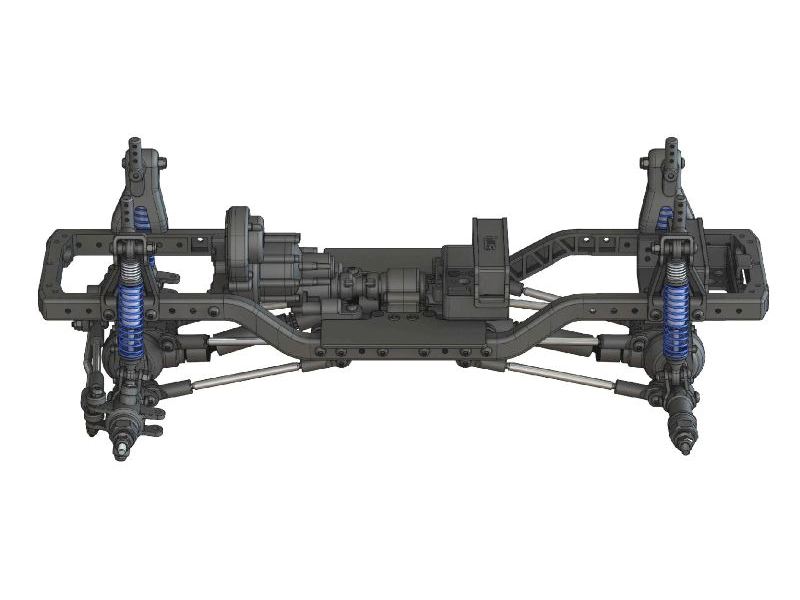

CTS CHASSIS

ADVANCED VERSION

Based on the original CTS Chassis,
the Advanced Version offers enhanced performance anddurability
in a compact short-wheelbase design.
The mid and rear sections of the drivetrain have been
fully upgraded to metal components,
ensuring long-term reliability even under demanding conditions.
Its modular design allows
for adjustable wheelbases of 242mm, 252mm, and 267mm
to suit different build needs.



Specification

● Chassis length 335mm
● Axle width (hex to hex) 162mm
● Wheelbase 242/252/267mm adjustable
● Full ball bearing
● Metal planetary gear carrier & idler gear
● Metal transfer case gear
● 4mm Stainless link rod (AMS/SOA)
● Aluminum shocks set
● Super soft shock spring
● Pre-built F&R Axle set
● Pre-built Reducer box set
● Pre-built Transfer box set



---

Planetary gearbox with metal gears

High power, low noise. Compact. Precise. Built to perform.

● Pre-built Reduce box set

Reverse-rotation transfer with metal gears

Less body roll. More control.

● Pre-built Transfer box set

A162 front and rear axle sets

To meet the diverse needs of enthusiasts, the transmission direction can be reversed, allowing for enhanced customization and modular flexibility.

High-precision powder metallurgy bevel gear

 Heat-treated. Durable. Ready for anything.

● Pre-built F&R Axle set



High-efficiency planetary gearbox

A compact and noise suppression design with high precision plastics maximizes the gearbox power density and operational smoothness.

● Metal planetary gear carrier included

Floating motor mount

Obviate the unnecessary vibrations which has potential to disturb the normal function of reducer system.

Full ball bearing

Smooth and efficient power transfer, every time.



Steering large kingpin inclination

This clever tilt not only lightens the workload for your steering gear but also enhances precision handling, making every turn feel like a smooth dance move.

The caster angle of the steering system

Positive caster keeps your vehicle running straight and stable.

.

---
